Applications

Tube formation assays and angiogenesis assays

3D cell culture

Immunofluorescence staining

Sprouting assays

Live cell imaging of attached cells

Specifications

Define and print your experimental setup

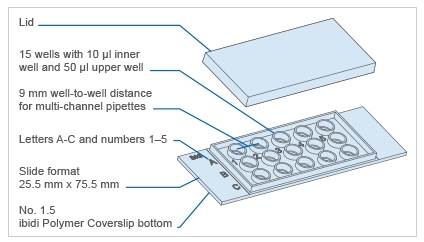

Technical Features

Standard slide format

Closely fitting lid to reduce evaporation

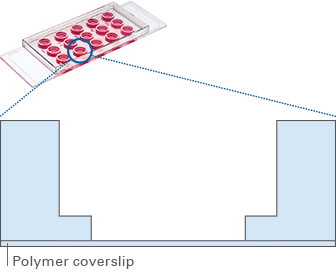

4 mm well within a 5 mm well

Geometry enables pipetting of a homogeneous 0.8 mm thick gel layer*

Provides homogeneous cell growth

Compatible with staining and fixation

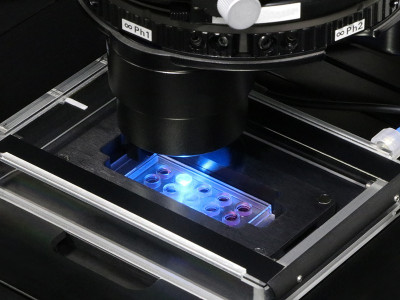

Excellent optical properties for microscopy

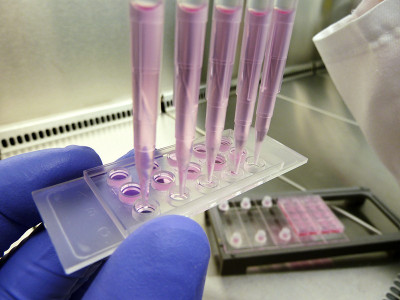

Compatible with multi-channel pipettes

Made of biocompatible plastic material: no glue, no leaking

Suitable for use with various types of gels* (e.g., Matrigel?, collagen, and agarose)

Also available with a No. 1.5H glass bottom: μ-Slide 15 Well 3D Glass Bottom

Also available in a 96 well format: μ-Plate 96 Well 3D

*The gel matrix is not included with this product.

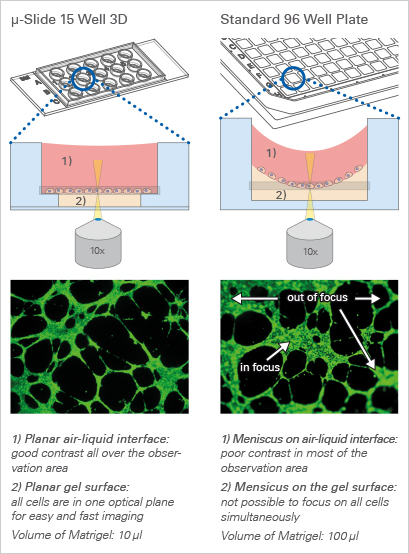

Every Cell in Focus:

The Principle of the μ-Slide 15 Well 3D

The μ-Slide 15 Well 3D has a specialized geometry for the easy, convenient, and reproducible conduction of tube formation assays. It is also ideal for sprouting assays, immunofluorescence staining, and general 3D cell culture.

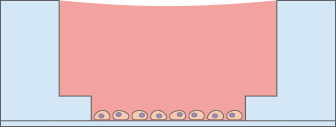

After the gel has been pipetted into the inner well and given time to solidify, the cells can be seeded on top of it for tube formation analysis. Due to the “well-in-a-well” technology, the amount of gel needed is reduced to only 10 μl per well, which is 10% of the amount used in regular multiwell plates.

Further, no gel meniscus is formed. This ensures the formation of a uniformly thick gel matrix on which all cells are in one optical plane, creating reproducible cell culture conditions. The μ-Slide 15 Well 3D can be used with all common hydrogel matrices, such as Matrigel?, collagen gels, agarose gels, and hyaluronic acid gels.

With its 15 wells, the μ-Slide 15 Well 3D is designed for low throughput assays. For large scale applications, ibidi provides the μ-Plate 96 Well 3D.

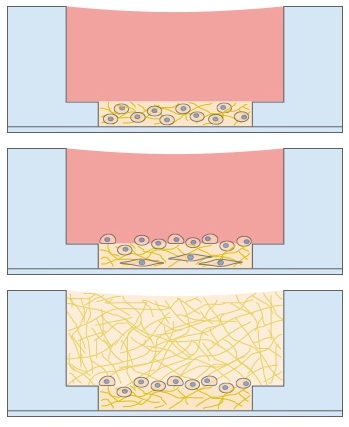

The μ-Slide 15 Well 3D Can Be Used in a Wide Range of Applications

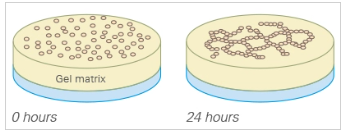

Tube Formation Assay or Angiogenesis Assay

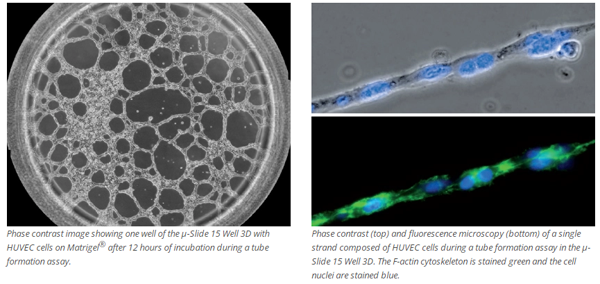

For a tube formation assay (also called angiogenesis assay), endothelial cells are seeded on top of a 10 μl gel layer (basement membrane-like surface), where they form capillary-like structures. Typically, Matrigel? is used. The tube formation ability of the cells can be used to analyze the pro- or anti-angiogenic potential of various drugs.

Sprouting Assay

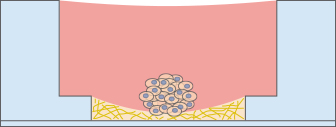

The sprouting potential of a cell cluster can be conveniently analyzed using the μ-Slide 15 Well 3D. To carry out a sprouting assay, spheroids or pieces of tissue (e.g., from the aorta), are placed onto or directly in the gel matrix before imaging.

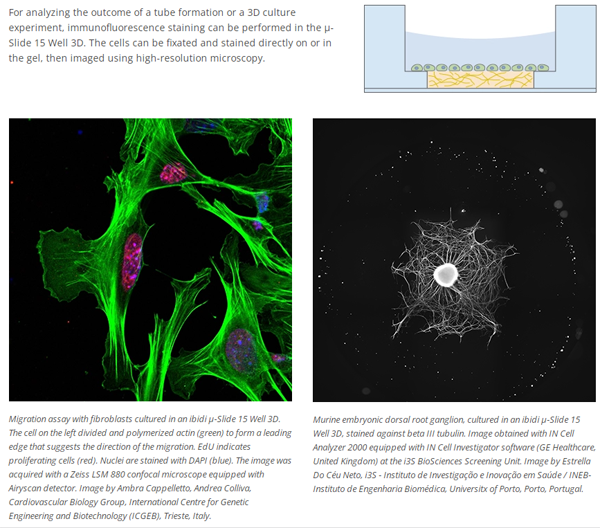

Immunofluorescence Staining

For analyzing the outcome of a tube formation or a 3D culture experiment, immunofluorescence staining can be performed in the μ-Slide 15 Well 3D. The cells can be fixated and stained directly on or in the gel, then imaged using high-resolution microscopy.

Focusing Cells

When using less than 10 μl of gel to fill the inner well of the μ-Slide 15 Well 3D, small numbers of cells can be cultivated and focused on a soft gel surface.

Low Volume Microscopy Chamber

The μ-Slide 15 Well 3D can also be used as a low-volume microscopy chamber without any gel, which is useful for experiments where several wells with a low volume are required.
